Top Mistakes Researchers Make While Using MATLAB Simulink — And How to Avoid Them

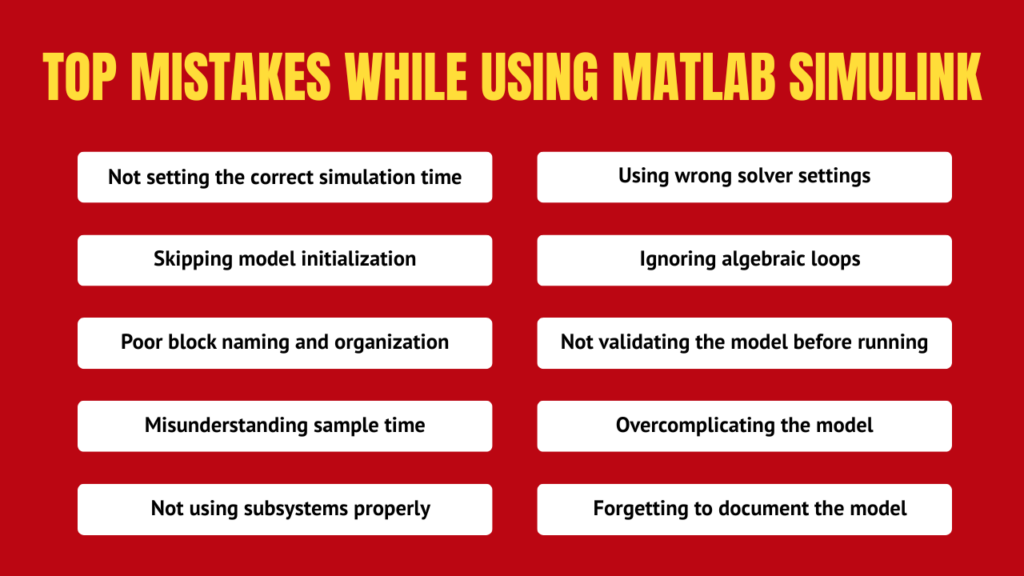

MATLAB Simulink is one of the most powerful tools for model-based design, signal processing, and control system simulation. But even experienced researchers make common mistakes that slow down their work or produce wrong results. In this guide, we break down the top Simulink mistakes and how you can fix them.
1. Not Setting the Correct Simulation Time
One of the most basic Simulink mistakes is running a simulation without setting the right start and stop time. Researchers often leave the default values and then wonder why their results don’t match real-world behavior. If your simulation time is too short, you miss important dynamics. If it’s too long, you waste computation time.
Fix: Always define your simulation start time and stop time based on the physical system you are modeling. For a control system that settles in 5 seconds, set the stop time to at least 10–15 seconds to clearly observe steady-state behavior.
2. Using Wrong Solver Settings
MATLAB Simulink offers variable-step and fixed-step solvers. A common mistake is using a variable-step solver for hardware-in-the-loop (HIL) or real-time MATLAB simulation. This can cause timing issues and inaccurate results. Many beginners also pick the wrong ODE solver (like ODE45 for stiff systems) and get poor performance.
Fix: ODE45 is commonly used for non-stiff continuous systems, while ODE15s is often better for stiff systems. For discrete or real-time applications, use a fixed-step solver. Always select the solver based on your model dynamics and simulation requirements rather than relying on one default option.
3. Skipping Model Initialization
Many researchers forget to properly initialize their model before simulation. This means integrators, memory blocks, and state variables start at zero by default — which may not reflect the real initial conditions of your system. This leads to transient errors at the beginning of every simulation run.
Fix: Use the “Initial Conditions” parameter inside integrator blocks. Also use a model initialization script in MATLAB workspace or the PreLoadFcn callback to set all initial values before the simulation starts.
4. Ignoring Algebraic Loops
Algebraic loops happen when Simulink cannot determine the value of a signal because it depends on itself — a circular dependency. Researchers often get this warning and ignore it. But this can cause major simulation errors or slow down performance.
Fix: First determine whether the algebraic loop is physically meaningful or caused by model structure. Artificial loops can sometimes be resolved using Unit Delay or Memory blocks, but these introduce delays and may affect system behavior. In many cases, restructuring the model or using an Algebraic Constraint block is a better solution.
5. Poor Block Naming and Model Organization
A messy Simulink model with blocks named “Gain1”, “Gain2”, “Gain3” is a nightmare to debug — especially when you return to the model weeks later or share it with a team. This is one of the most overlooked Simulink best practices.
Fix: Give every block a meaningful name that describes its function (e.g., “SpeedControllerGain”). Use color coding for different subsystems. Add annotations with text blocks to explain what sections of the model do.
6. Not Validating the Model Before Running
Researchers often hit “Run” right away without checking for warnings or errors. MATLAB Simulink provides a model advisor and diagnostic tools, but many users ignore them completely. This leads to incorrect results or crashes mid-simulation.
Fix: Run the Model Advisor (Analysis → Model Advisor → Run All Checks) before every major simulation. Also enable simulation diagnostics under the Configuration Parameters to catch data type mismatches, unconnected ports, and more.
7. Misunderstanding Sample Time
Sample time defines how often a block updates. Mixing continuous and discrete blocks without understanding their sample times is a very common Simulink simulation error. It can cause rate transition warnings and produce data that does not make physical sense.
Fix: Use the “Sample Time Legend” (press Ctrl+J) to visualize the sample times of all blocks. If you are mixing continuous and discrete signals, use Rate Transition blocks to handle the handoff safely.
8. Overcomplicating the Model
More complexity does not mean more accuracy. Researchers sometimes build extremely detailed Simulink models that are impossible to debug, slow to simulate, and hard to maintain. This is a common pitfall in large-scale system modeling with Simulink.
Fix: Follow the principle of modeling simplicity. Start with a simple model and add complexity only when needed. Use Simulink library blocks instead of building everything from scratch, and profile your model to find performance bottlenecks.
9. Not Using Subsystems Properly
Subsystems in Simulink allow you to group related blocks together, just like functions in programming. Many researchers avoid subsystems because they seem complex, and end up with a flat, unorganized model that is very hard to reuse or maintain.
Fix: Anytime you have more than 5–6 blocks doing one job, wrap them into a subsystem. Use masked subsystems to create clean interfaces with parameters. Store reusable subsystems in a Simulink library for future projects.
10. Forgetting to Document the Model
A Simulink model without documentation is a black box. When you share it with collaborators — or come back to it after six months — nobody knows what the blocks do, why certain parameter values were chosen, or what the model is supposed to represent.
Fix: Use DocBlock in Simulink to add descriptions to the model and its subsystems. Write a brief README in your MATLAB project folder. Also use the model’s Description field under Model Properties to capture the purpose, version, and author details.
Frequently Asked Questions
1. What is the most common mistake in MATLAB Simulink?
Using the wrong solver settings is one of the most common issues. It can lead to inaccurate results, slow simulations, or errors — especially when working with stiff systems or real-time applications.
2. How do I fix algebraic loop errors in Simulink?
First identify whether the algebraic loop is caused by the model structure or represents a real physical relationship. In some cases, Unit Delay or Memory blocks can help break artificial loops, but they introduce delays that may affect system behavior. Depending on the application, restructuring the model or using an Algebraic Constraint block may be a more accurate solution.
3. How do I make my Simulink model run faster?
Simplify the model, use fixed-step solvers where appropriate, enable accelerator mode, and avoid unnecessary continuous blocks in discrete systems.
4. Is Simulink good for research?
Yes. MATLAB Simulink is widely used in academic and industrial research for control systems, signal processing, power electronics, robotics, and system modeling. When used correctly, it is one of the most reliable simulation platforms available.
Final Thoughts
MATLAB Simulink is an incredibly powerful tool — but like any tool, it works best when you understand how to use it properly. By avoiding these top Simulink mistakes — wrong solvers, poor organization, skipped initialization, and ignored warnings — you can save hours of debugging time and get results you can actually trust. Start small, validate often, and document everything. Your future self (and your collaborators) will thank you. If you need any PhD support along the way, Kenfra Research — one of the best PhD assistance in India — can help you navigate complex simulation challenges, research methodology, and thesis work with expert guidance.
